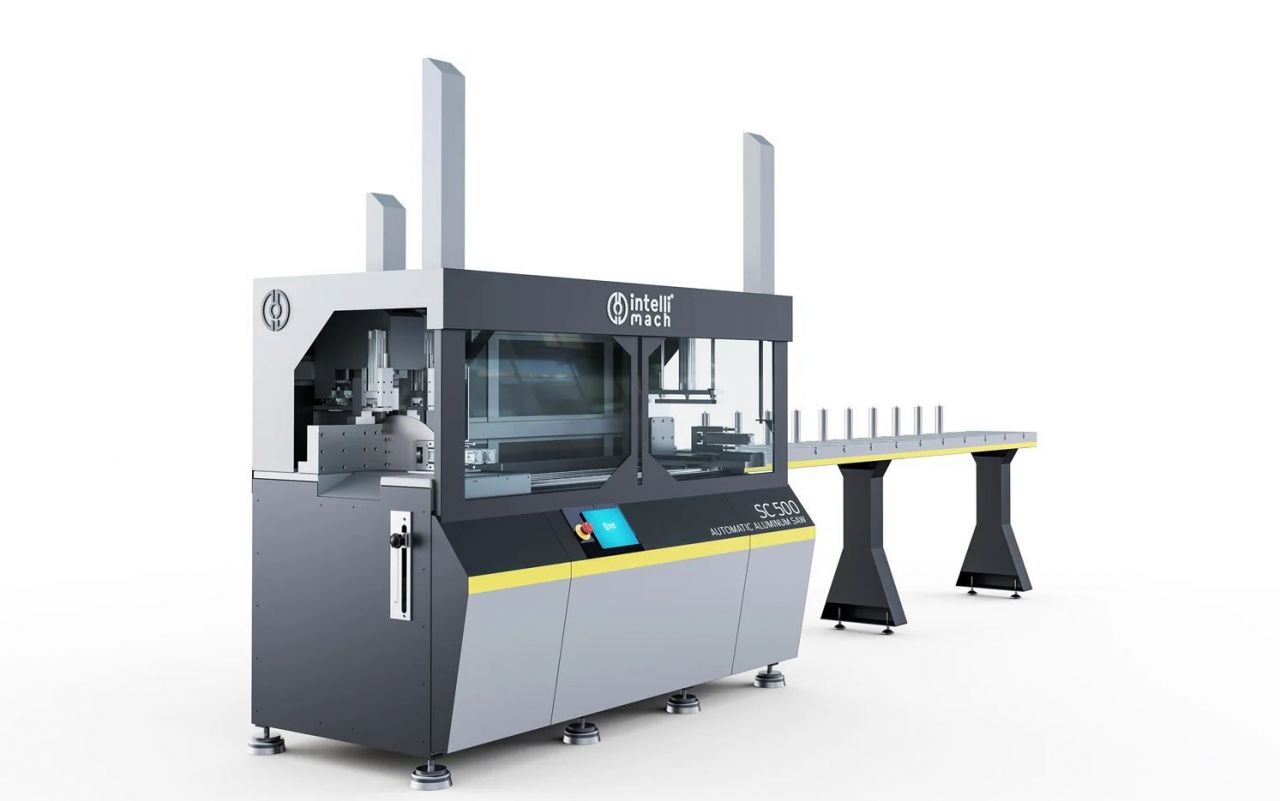

Automatic Aluminium Sawing and Drilling Machine SC 500 SC 500
Automatic Aluminium Sawing and Drilling Machine SC 500 SC 500

Technical Features

SC 500 Automatic Aluminium Sawing and Drilling Machine

Suitable for slicing and vertical hole drilling in large volumes of window and industrial profiles
Equipped with high performance servo motors
Time saving is achieved with servo-controlled profile advance speed.
Horizontal and vertical clamping system
High cutting precision
Ability to make multiple cuts in single or bond form
Saw cooling system
The machine stops automatically when it reaches the Number of Cuts.
Pneumatically opening safety cover
Profile feeding stroke (5 – 1000 mm) in one go. There is no limit to the maximum

Technical Features

Motor 4kW 50/60Hz
Energy 400V 3P
Revolution  2500 RPM
Saw Diameter 500 mm
Air Consumption 165 Lt / min
Pressure 6/8 Bar
Weight 620KG



Technical Features

SC 500 Automatic Aluminium Sawing and Drilling Machine

Suitable for slicing and vertical hole drilling in large volumes of window and industrial profiles
Equipped with high performance servo motors
Time saving is achieved with servo-controlled profile advance speed.
Horizontal and vertical clamping system
High cutting precision
Ability to make multiple cuts in single or bond form
Saw cooling system
The machine stops automatically when it reaches the Number of Cuts.
Pneumatically opening safety cover
Profile feeding stroke (5 – 1000 mm) in one go. There is no limit to the maximum

Technical Features

Motor 4kW 50/60Hz
Energy 400V 3P
Revolution  2500 RPM
Saw Diameter 500 mm
Air Consumption 165 Lt / min
Pressure 6/8 Bar
Weight 620KG



TEHNIČKE SPECIFIKACIJE
Automatic Aluminium Sawing and Drilling Machine SC 500 SC 500
FOTOGRAFIJE PROIZVODA
